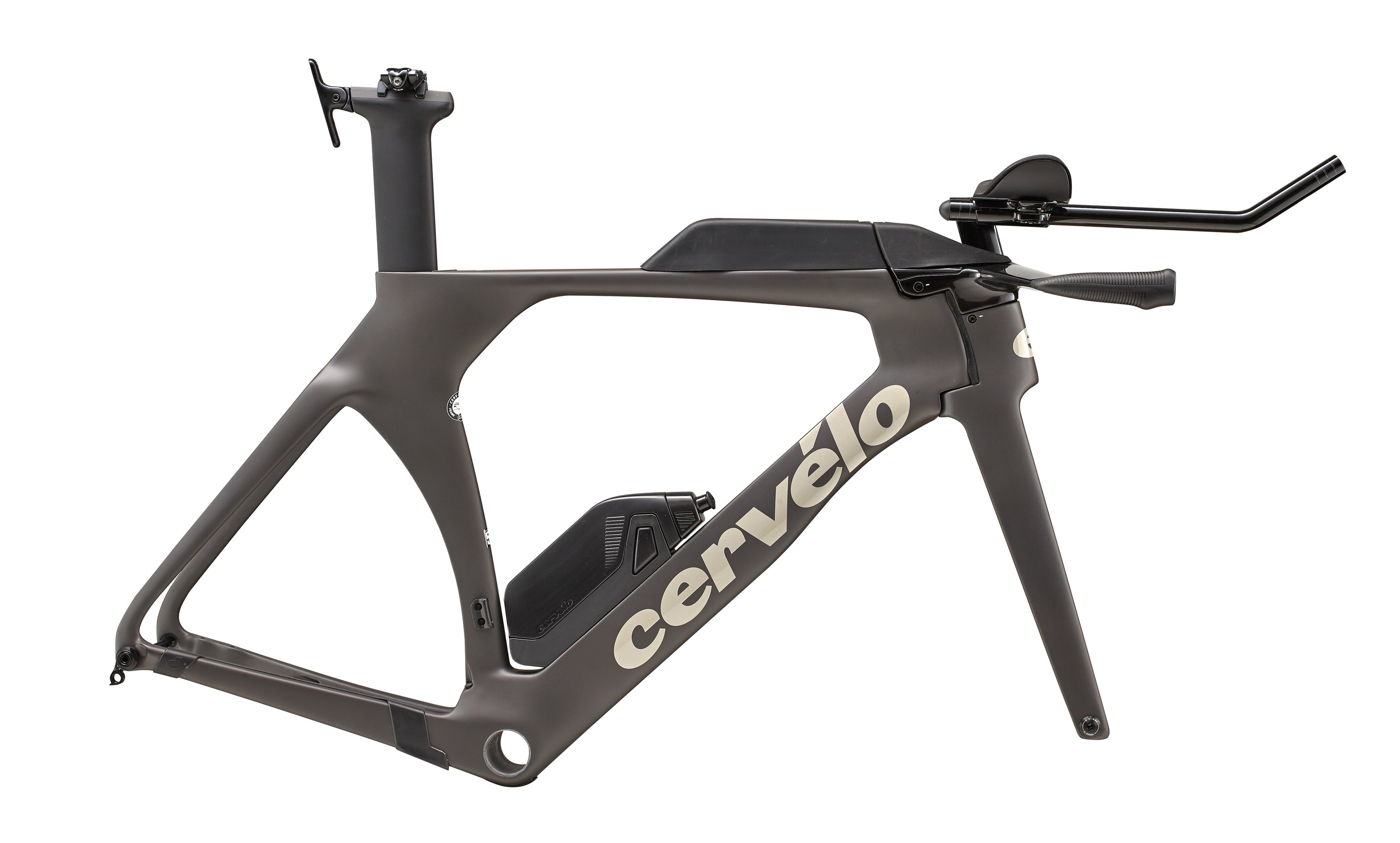

Cervelo P5 Frameset (2023)
Cervelo P5 Frameset (2023)
SPECS
|
Frame |
P5 Carbon |
|
Fork |
Cervélo All-Carbon, Tapered P5 Fork |
|
Rear Shock |
N/A |
|
Headset |
FSA IS2 1-1/8 x 1-3/8 |
|
Bottom Bracket |
N/A |
|
Seatpost |
Cervélo SP23 Carbon |
|
Axles |
Cervelo Aero Thru-Axles, 12x100/142 |
|
Accessories & Extras |
5 CarbonBasebar/EX14 Riser/Carbon Extensions |
GEO
|
SIZE |
48 |
51 |
54 |
56 |
58 |
61 |
|
STACK |
461 |
482 |
498 |
516 |
535 |
556 |
|
REACH |
389 |
406 |
420 |
433 |
446 |
455 |
|
HEAD TUBE ANGLE |
71 |
72.5 |
72.5 |
72.5 |
72.5 |
72.4 |
|
FORK OFFSET |
52 |
43 |
43 |
43 |
43 |
40.4 |
|
HEAD TUBE LENGTH |
58.5 |
70.7 |
88 |
106.9 |
126.8 |
147.8 |
|
BB DROP |
75 |
75 |
75 |
75 |
75 |
74 |
|
FRONT CENTRE |
582 |
583 |
602 |
622 |
640 |
654 |
|
CHAIN STAY LENGTH |
405 |
405 |
405 |
405 |
405 |
405 |
|
STANDOVER* |
739 |
759 |
775 |
792 |
812 |
906 |
|
WHEELBASE |
975 |
976 |
995 |
1015 |
1033 |
1048 |
