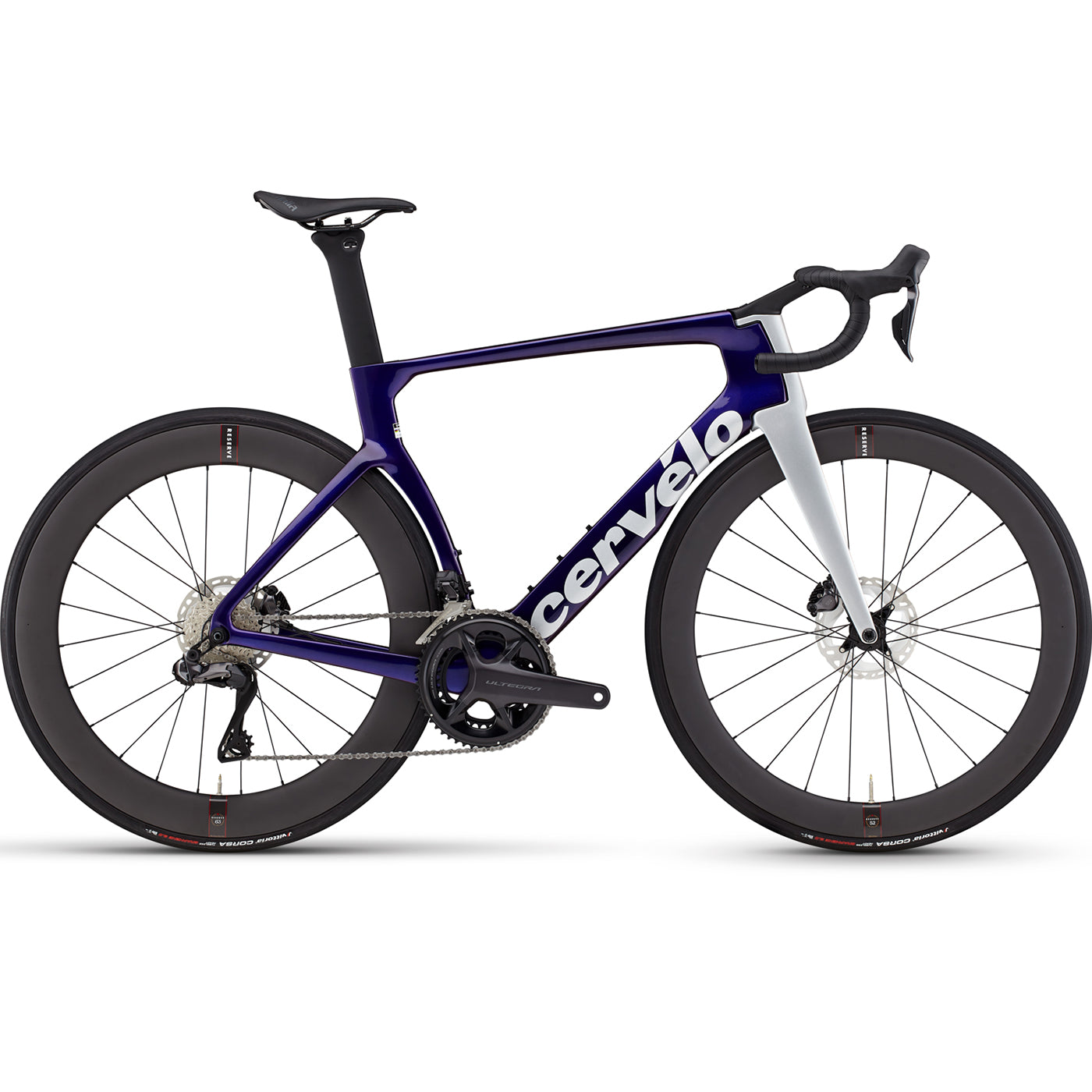

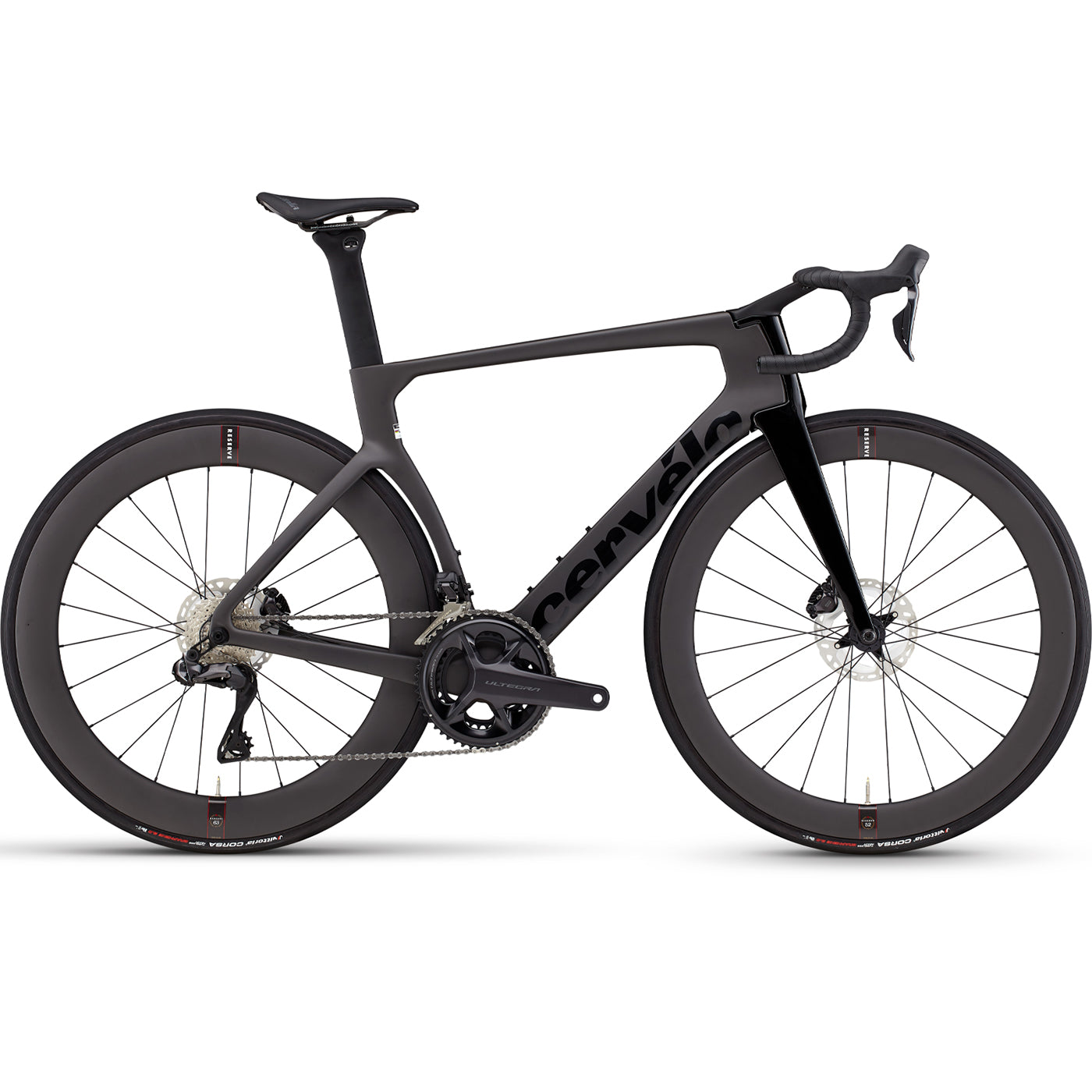

Cervelo S5 Shimano Ultegra Di2
Cervelo S5 Shimano Ultegra Di2
SPECS
|
FRAME |
Cervélo All-Carbon, Tapered S5 Fork |
|
WHEELS |
Front: Reserve 52, 25.4 IW, Zipp ZR1 ST, 24H, centerlock, tubeless compatible Rear: Reserve 63, 24.4mm IW, Zipp ZR1 ST,12x142mm, HG freehub, 24h, centerlock, tubeless compatible |
|
TIRES |
Vittoria Corsa TLR G 700x28c |
|
BB |
Ceramic Speed, BBright for 24mm spindle |
|
CRANKSET |
Shimano Ultegra R8100, 52/36T, 12 Speed |
|
SHIFTERS |
Shimano Ultegra, R8170, 12 speed |
|
FRONT MECH |
Shimano Ultegra, R8150, 12 speed |
|
REAR MECH |
Shimano Ultegra, R8150, 12 speed |
|
CASSETTE |
Shimano Ultegra, 11-30, 12 Speed |
|
CHAIN |
Shimano M8100, 12 speed |
|
BRAKES |
Shimano Ultegra |
|
ROTORS |
Shimano MT800 Centerlock |
|
HANDLEBARS |
Cervélo HB14 Carbon |
|
STEM |
Cervélo ST35 Carbon |
|
HEADSET |
FSA IS2 1-1/8 x 1-3/8 |
|
SEATPOST |
Cervélo SP20 Carbon |
|
SADDLE |
Selle Italia NOVUS BOOST EVO SuperFlow Ti |
|
ACCESSORIES |
Cervelo Handlebar Front Computer/Accessory Mount, Cervelo Rear Accessory Mount |
GEO
|
SIZE |
48 |
51 |
54 |
56 |
58 |
|
RIDER HEIGHT |
4'11"-5'3" |
5'3"-5'5" |
5'5"-5'8" |
5'8"-5'10" |
5'10-6'1" |
|
REACH |
367 |
376 |
384 |
392 |
401 |
|
STACK |
496 |
519 |
542 |
565 |
588 |
|
HEAD TUBE ANGLE |
71° |
72° |
73° |
73.5° |
73.5° |
|
FRONT CENTER |
579 |
580 |
581 |
588 |
604 |
|
BOTTOM BRACKET DROP |
72.5 |
72.5 |
70 |
70 |
67.5 |
|
HEAD TUBE LENGTH |
69 |
87 |
109 |
130 |
157 |
|
TOP TUBE LENGTH |
520 |
535 |
550 |
565 |
581 |
|
SEAT TUBE ANGLE |
73° |
73° |
73° |
73° |
73° |
|
STANDOVER HEIGHT |
715 |
736 |
754 |
782 |
813 |
|
TRAIL |
56.1 |
56.1 |
56.2 |
56.2 |
56.2 |
|
WHEEL SIZE |
700C |
700C |
700C |
700C |
700C |
|
FORK OFFSET |
58 |
52 |
46 |
43 |
43 |
|
WHEELBASE |
973 |
974 |
975 |
982 |
999 |
|
CHAINSTAY LENGTH |
405 |
405 |
405 |
405 |
405 |
