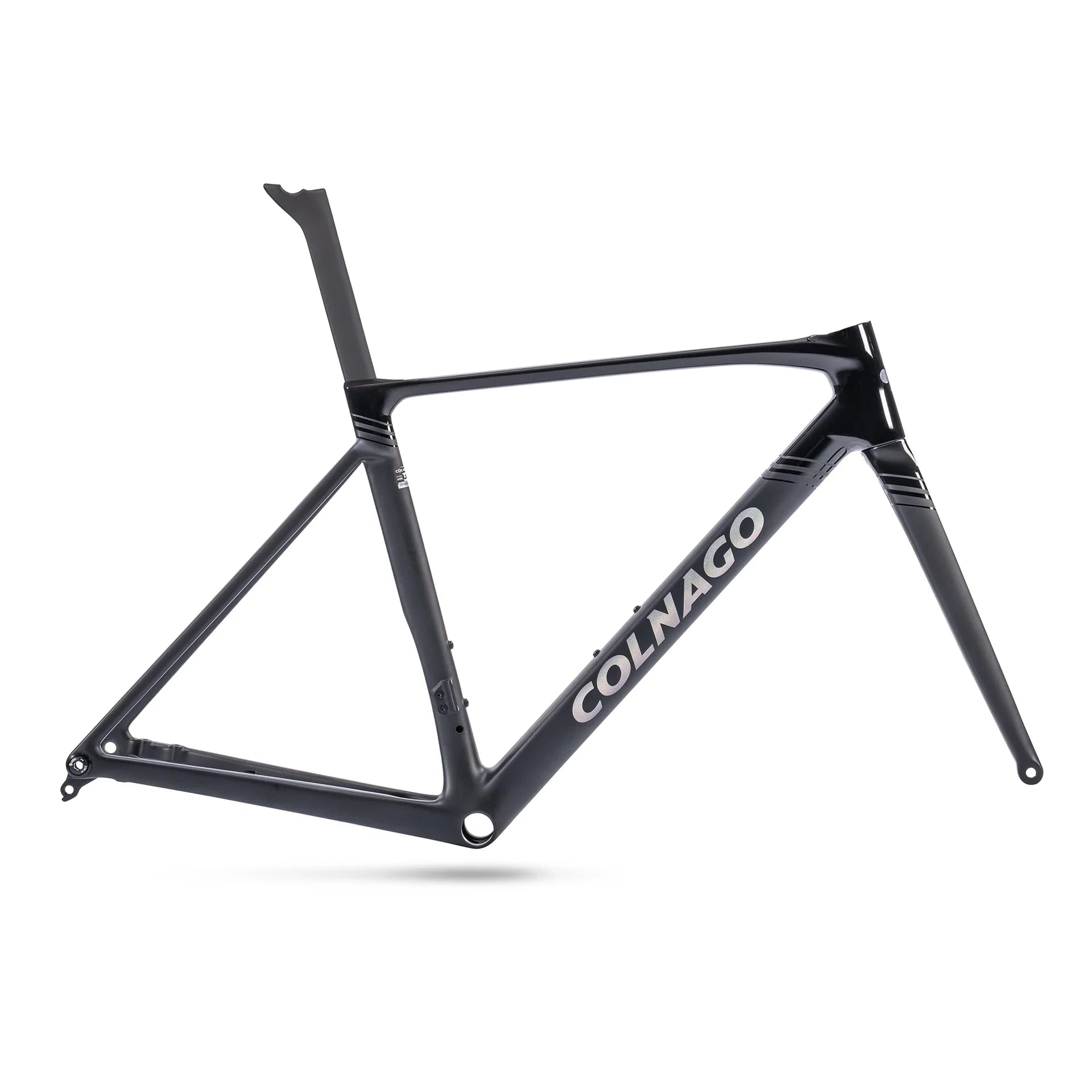

Colnago V5RS Frame, Black/Black, Size 53

Colnago V5RS Frame, Black/Black, Size 53

$6,250.00 USD

The V5Rs is the latest evolution of the Colnago V Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round racing bike, designed to continue dominating the WorldTour with Pogačar and his team-mates.

To obtain a winning bike, several factors must be balanced. It's not just a question of lightness, but also of aerodynamics, responsiveness and handling. The V5Rs is the result of the perfect balance of these elements - all performed with a single objective: to win.

12.5% lighter than the V4RS
Thinner profiles for improved aerodynamics
13% less frontal area than the V4RS
Improved steering from a refined fork design
32c tire clearance

Includes frame, seatpost, and headset
SPECIFICATIONS

Frame (material): Colnago V5Rs Monocoque carbon frame
Fork (material, section notes): Carbon fork for disc brakes, integrated cables, Semi-Circular section.
Headset: 1"1/8 and 1"1/4 - SLT Treated Bearings
Seatpost: Carbon seatpost, 15mm offset (Standard Option), 0 mm offset sold separately
Through axles: 12x100 mm (front) - 12x142 mm (rear)
Bottom Bracket Standard: BSA (English Threaded Bottom Bracket)
Tire Clearance: 32c (nominal width)
Weight: 685g (size 485 unpainted frame)

GEO

Reach: 397 mm
Stack: 575 mm
Top Tube Length: 564 mm
Fork: 377 mm
Head Tube Length: 162 mm
Head Tube Angle: 73.0°
Seat Tube Angle: 73.8°
Chainstay Length: 408 mm
Front Center: 600 mm
BB drop: 72 mm
