ENVE Frameset Fray Venom 54

ENVE Frameset Fray Venom 54

$4,800.00 USD

The ENVE Fray is a premium all-road bike built for endurance and versatility. Designed with modern endurance geometry and aero tube shaping, it delivers confident handling and long-ride comfort on smooth pavement, rough roads, and winter training miles. With clearance for wide road tires and light gravel, internal IN-Route cable routing, and a compliant carbon layup, the Fray is a modern endurance bike with wide tire clearance, and a tight, snappy ride feel.

KEY FEATURES

All-road geometry tuned for comfort and performance
Optimized for 31–35 mm tires (fits up to 40 mm)
Clearance for 700×40 mm tires with 1× drivetrain
Carbon frame built with ENVE Material Optimized Design (M.O.D.)
Integrated ENVE Cargo Bay in downtube for storage
Internal IN-Route cable and hose routing
Aerodynamic tube shaping tuned in CFD and wind tunnel
Fender/drivetrain mounting options for year-round use
Threaded T47 inboard-bearing bottom bracket
Customizable cockpit (handlebar/stem/seatpost a la carte)
Responsive yet stable handling for endurance riding
SPECIFICATIONS

Frame Material: ENVE M.O.D Carbon, 12x142mm Thru-Axle, Flat Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork: ENVE M.O.D Carbon, 12x100mm Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Bottom Bracket: Threaded T47 Inboard Bearing
Headset: ENVE Integrated IS52/IS52 Internal Drop-In
Brake Mount: Flat Mount Disc
Seatpost Diameter: ENVE Aero
Frame Weight: ~900 g ±2% (Size 56, painted, no hardware)
40c (measured) Tire Clearance
SRAM UDH Compatible

GEO

Reach: 383
Stack: 573
Top Tube (effective): 552
Seat Tube Length (C-to-Top): 480
Seat Tube Angle: 73.75°
Head Tube Angle: 72.0°
Head Tube Length: 157
Bottom Bracket Drop: 76
Bottom Bracket Height (31 mm tire): 266
Chainstay Length: 415
Wheelbase: 1,006
Front Center: 598
Trail (mid): ~58° (varies slightly by tire width)
Standover Height: 756
Rake (Fork Offset): 51
The side of an Enve Fray endurance road bike frameset in Venom

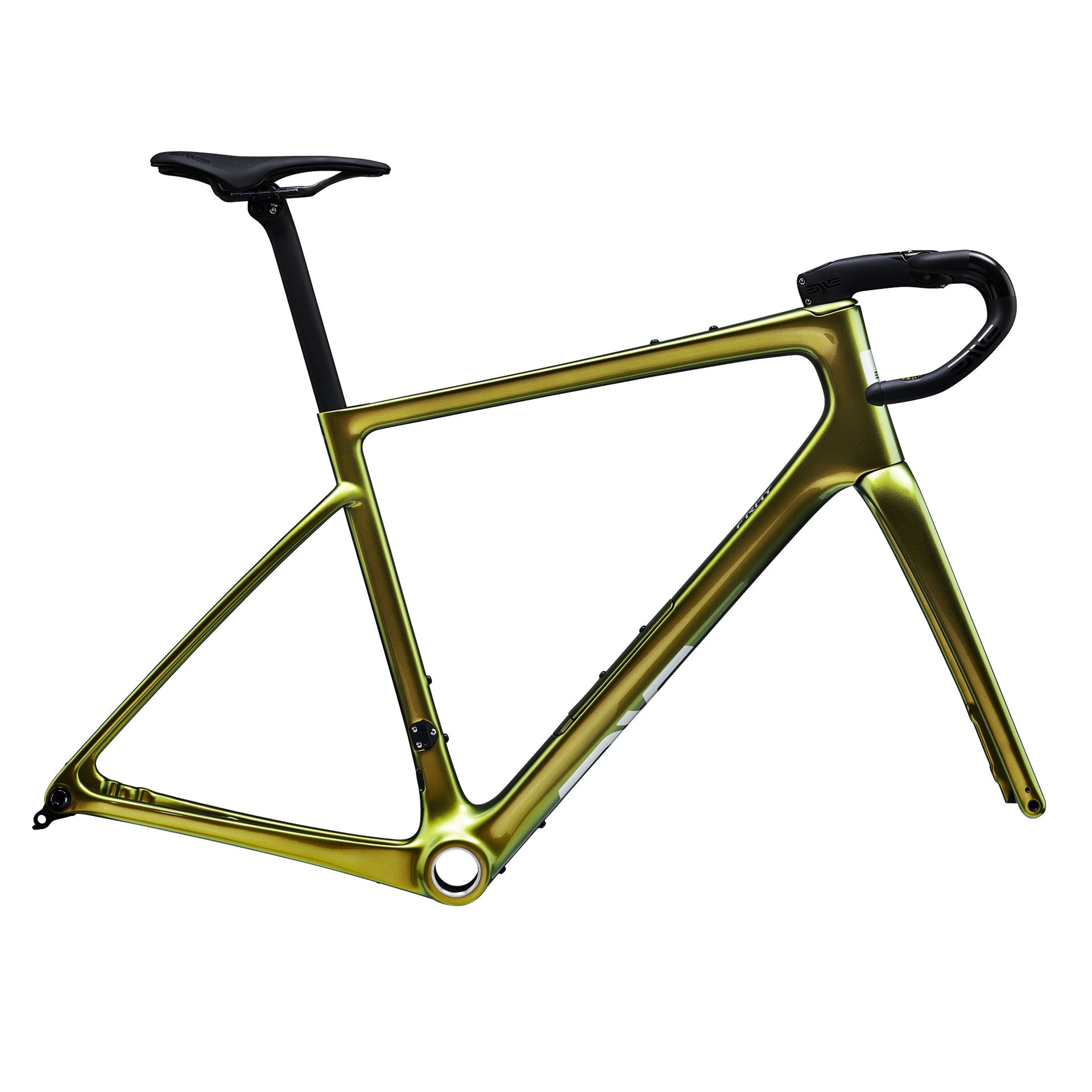

  • The side of an Enve Fray endurance road bike frameset in Venom

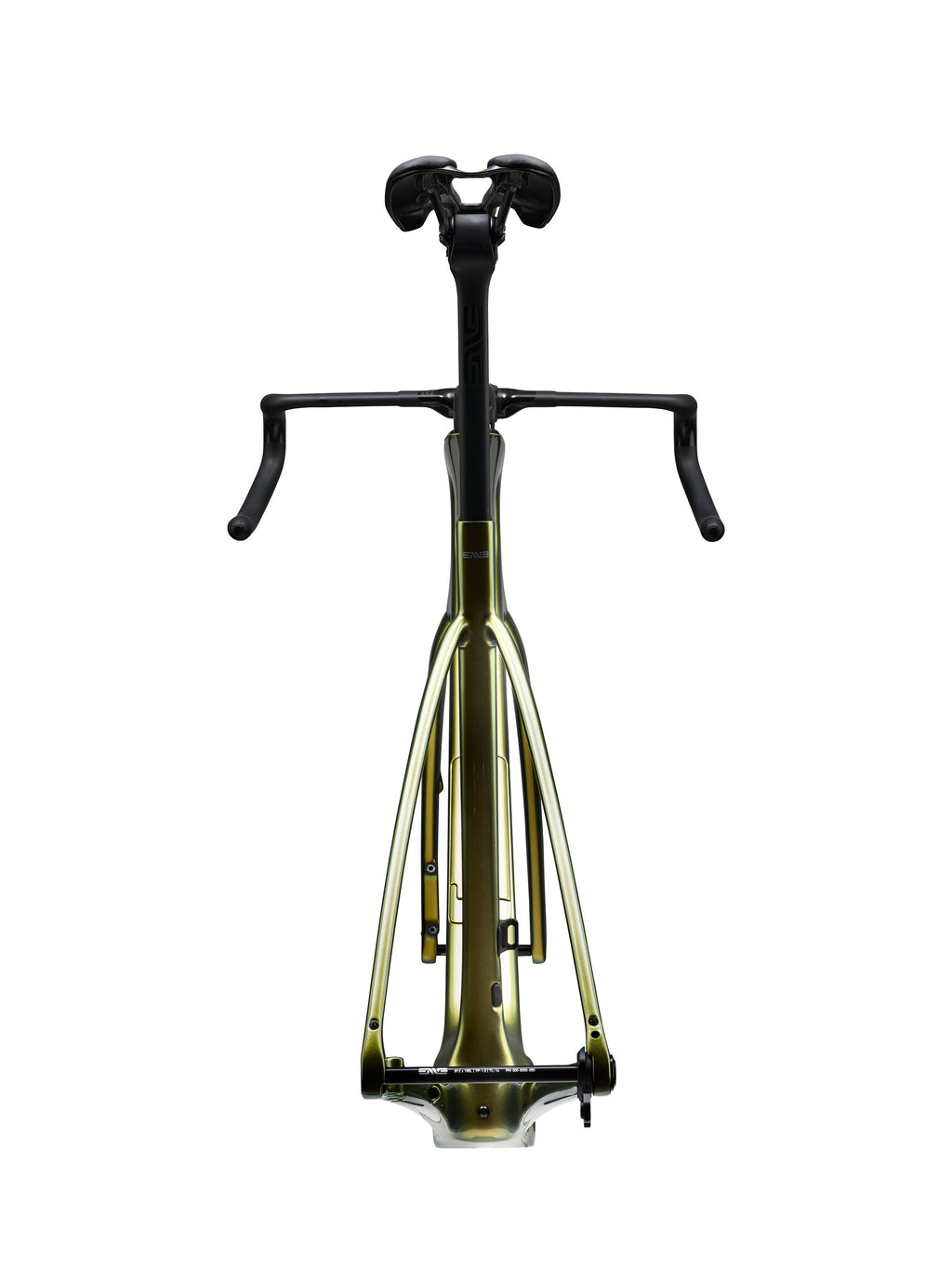

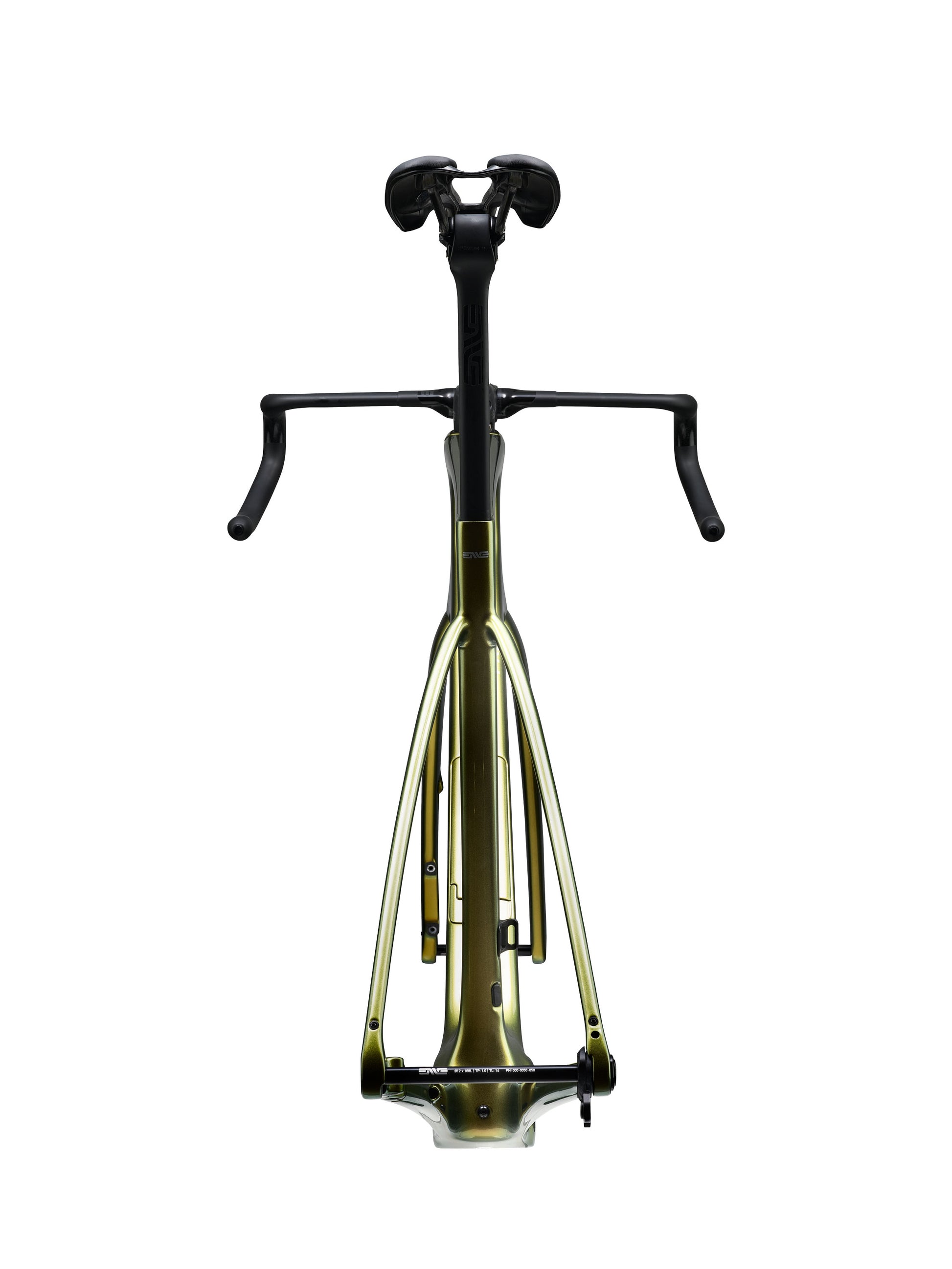

  • The back of an Enve Fray endurance road bike frameset in Venom

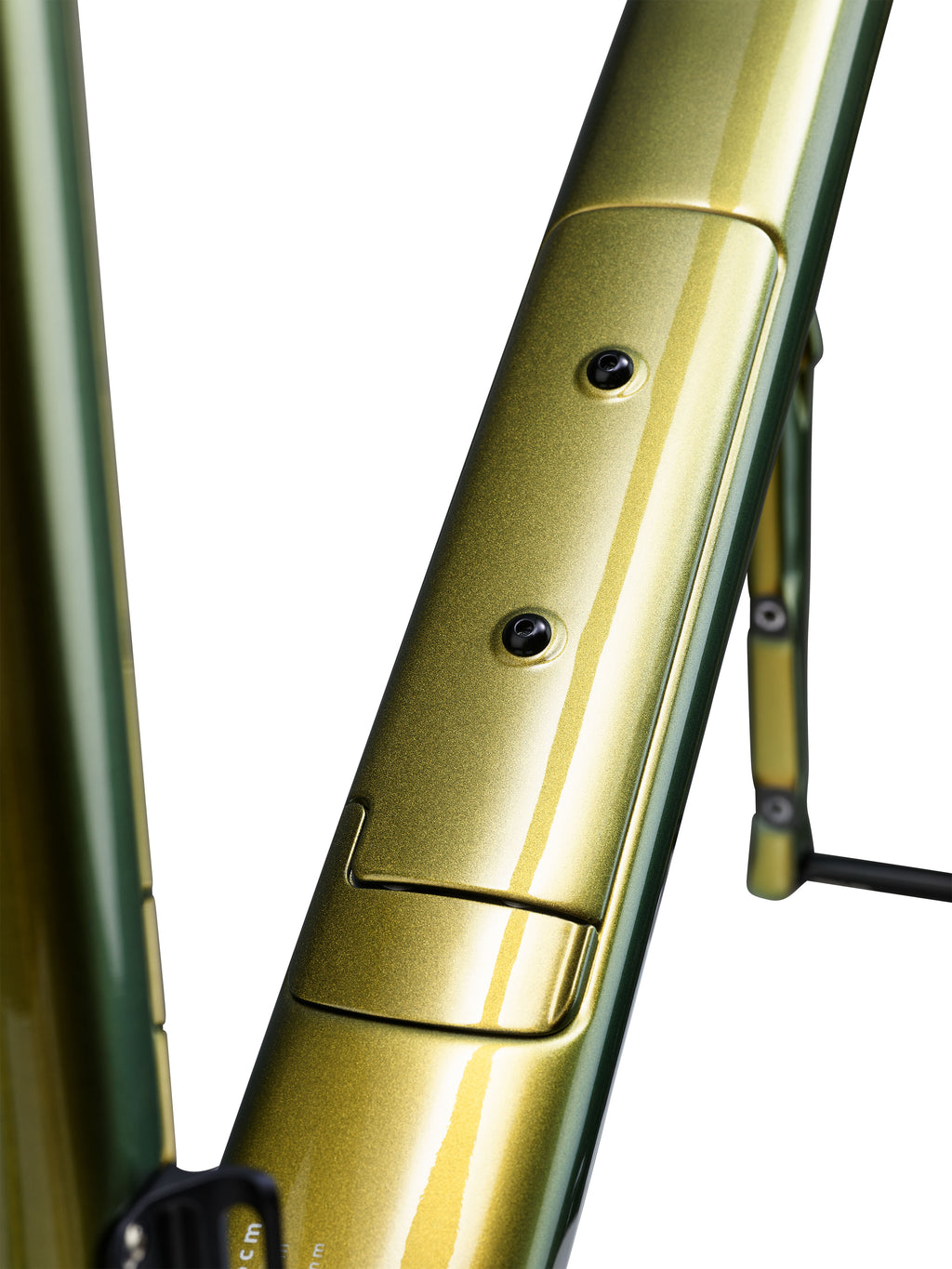

  • The downtube storage door on an Enve Fray endurance road bike in the venom colorway

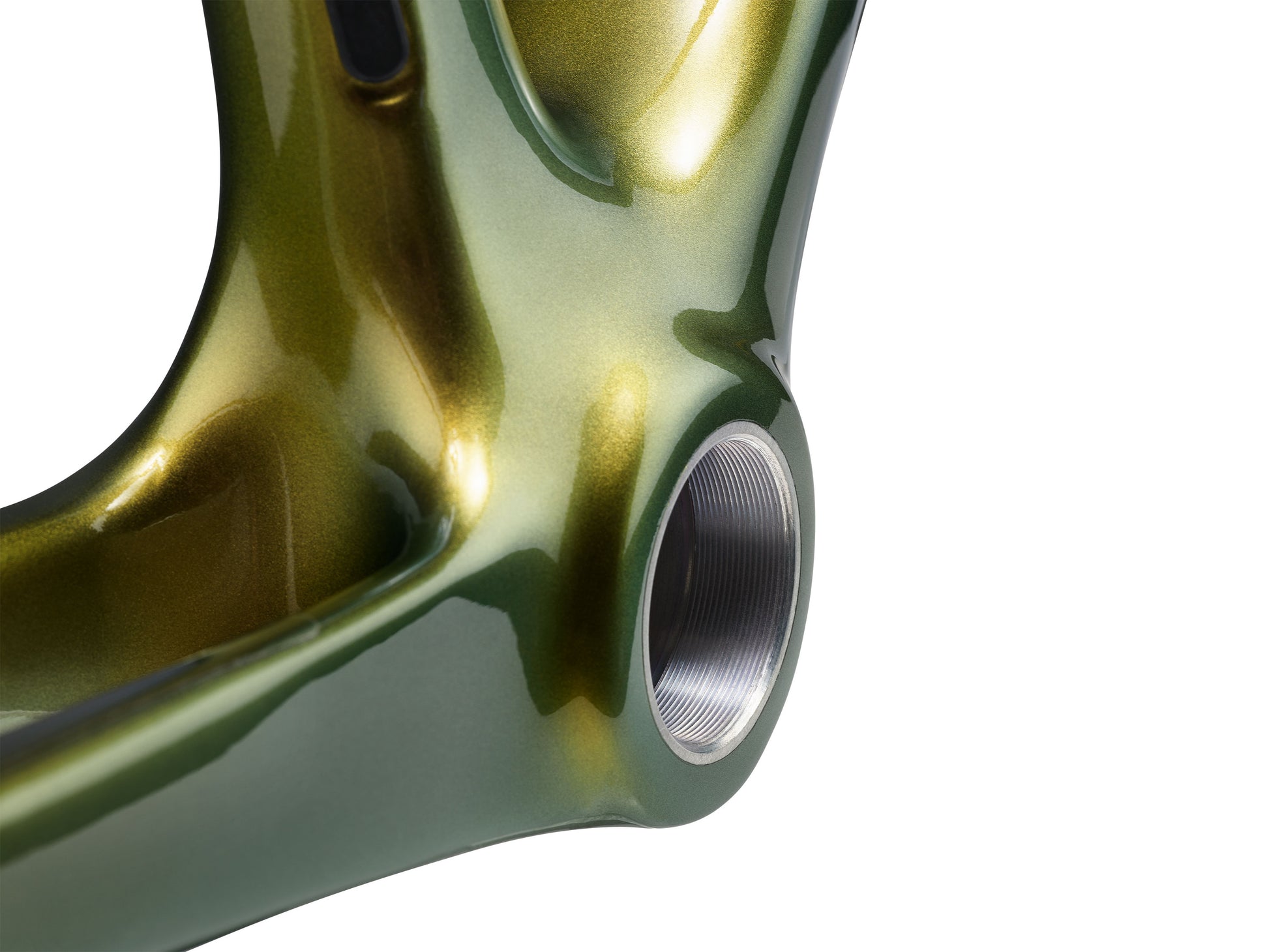

  • The threaded bottom bracket of an Enve Fray endurance road bike in the venom color
  • The side of an Enve Fray endurance road bike frameset in Venom
  • The back of an Enve Fray endurance road bike frameset in Venom
  • The downtube storage door on an Enve Fray endurance road bike in the venom colorway
  • The threaded bottom bracket of an Enve Fray endurance road bike in the venom color
