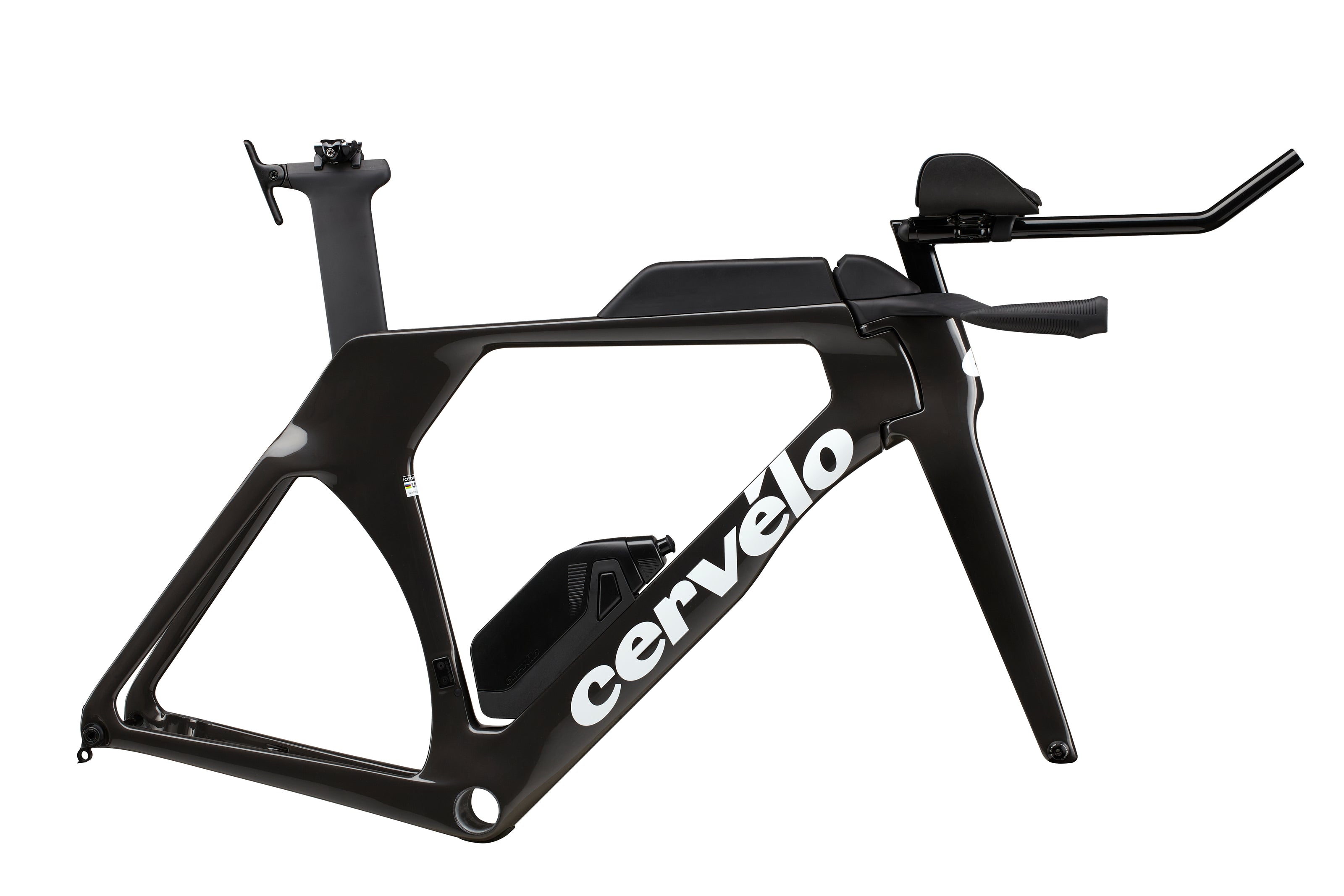

Cervelo P5 Frameset
$6,000.00 USD
The Cervelo P5 is the fastest way from point A to B, and it is Cervelo’s flagship TT bike. As built, the P5 is about 5 watts faster than the previous generation. With room for 29c tires front and bike, aero-optimized profiles, top-tube bento box, and the deepest tube sections the UCI will allow, the P5 is the cutting edge.
GEO
|
SIZE |
48 |
51 |
54 |
56 |
58 |
61 |
|
STACK |
461 |
482 |
498 |
516 |
535 |
556 |
|
REACH |
389 |
406 |
420 |
433 |
446 |
455 |
|
HEAD TUBE ANGLE |
71 |
72.5 |
72.5 |
72.5 |
72.5 |
72.4 |
|
FORK OFFSET |
52 |
43 |
43 |
43 |
43 |
40.4 |
|
HEAD TUBE LENGTH |
58.5 |
70.7 |
88 |
106.9 |
126.8 |
147.8 |
|
BB DROP |
75 |
75 |
75 |
75 |
75 |
74 |
|
FRONT CENTRE |
582 |
583 |
602 |
622 |
640 |
654 |
|
CHAIN STAY LENGTH |
405 |
405 |
405 |
405 |
405 |
405 |
|
STANDOVER* |
739 |
759 |
775 |
792 |
812 |
906 |
|
WHEELBASE |
975 |
976 |
995 |
1015 |
1033 |
1048 |
SPECIFICATIONS
